Upgrade or build your own Socket 1150 system!

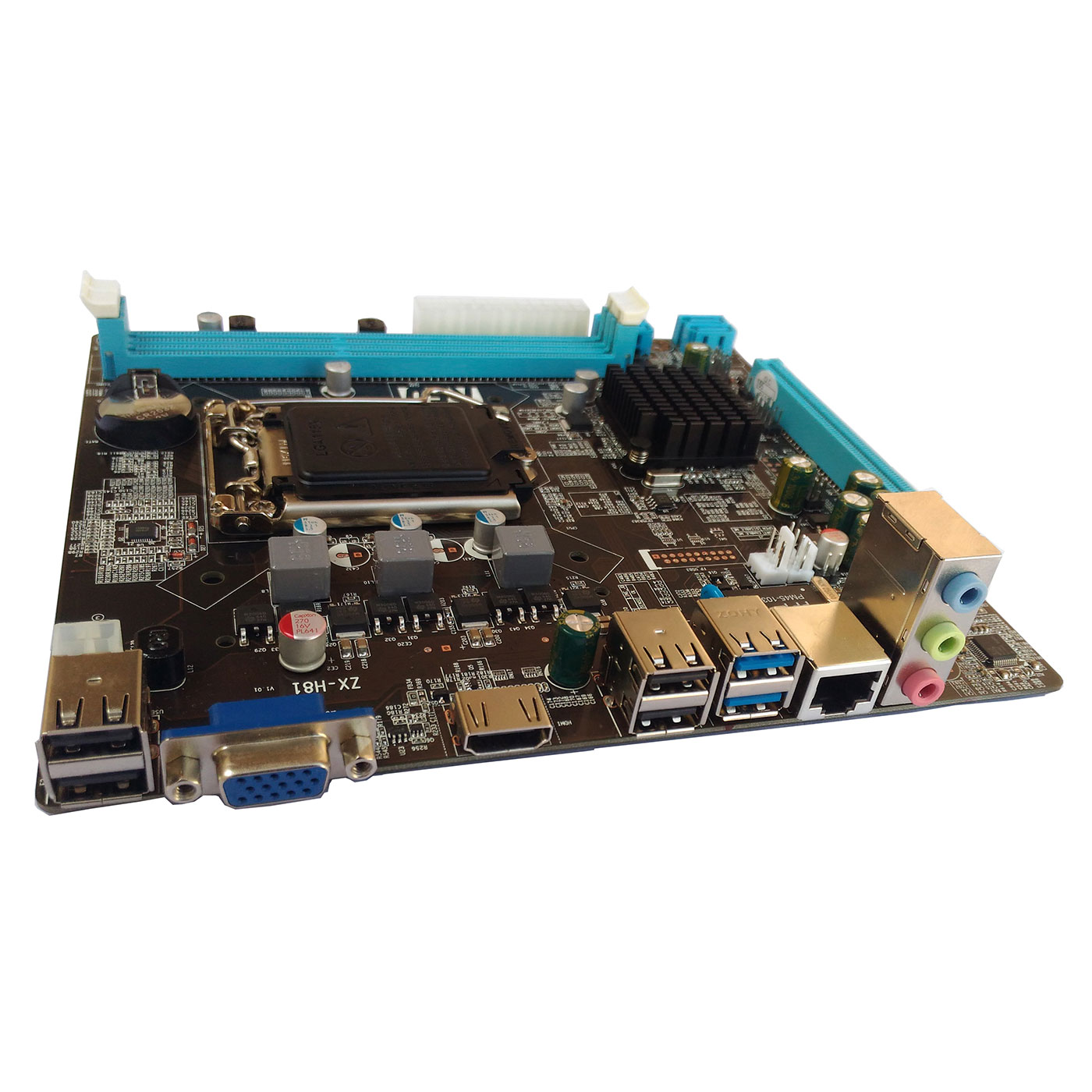

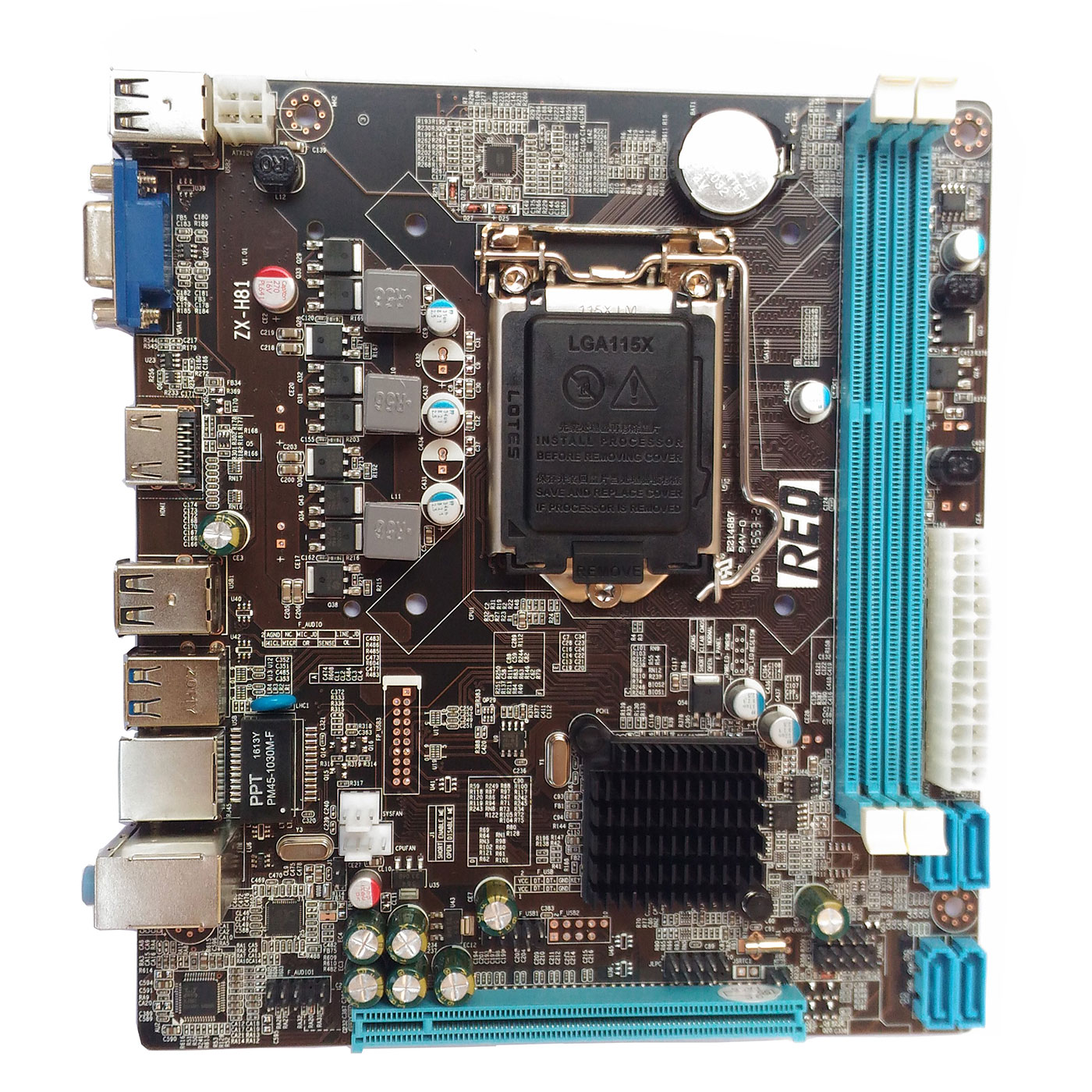

Based on the Intel H81 Express chipset, this REO H81 mATX motherboard supports Intel Core i7, Core i5 and Core i3 Socket 1150 processors. Two 240-pin DIMM sockets support up to 16 GB of DDR3 1600/1333/1066 MHz memory. Experience rich sound quality with integrated Realtek ALC662 5.1 channel audio.
Connect to a network with the integrated RTL810 Ethernet Controller. There is an one PCI Express x16 slots. The REO H81 motherboard has plenty of I/O ports such as four USB 2.0 ports and two USB 3.0 ports so you can add a number of peripheral devices!
Whether you're building your own system or upgrading, let this affordable REO H81 mATX motherboard lead the way! Order today!
|
|
|
|
Features/Specifications: |
|
|
|
- REO H81 Socket 1150 mATX Motherboard with HDMI, Video, Audio & Lan
- General Features:
- Intel H81 Express chipset
- Socket 1150 architecture
- microATX form factor
- Supports up to 16 GB of DDR3 1600/1333/1066 SDRAM (non-ECC memory)
- Integrated video
- Integrated 5.1 channel audio subsystem with three analog audio outputs using the ALC662 audio
- Integrated Ethernet (10/100 Mbits/sec) LAN subsystem using the RTL810 Ethernet Controller
- Four (4) Serial ATA ports
- 24-pin ATX power connector
- Expansion Slots:
- One (1) PCI Express 2.0 x16 slot
- Two (2) 240-pin DDR3 DIMM sockets
- I/O Ports:
- One (1) 15-pin VGA port
- One (1) HDMI
- One (1) 25-pin Parallel port
- Eight (8) USB ports (four rear USB 2.0, two USB 3.0 and two internal headers)
- One (1) RJ-45 Ethernet jack
- Mic in, Line in, Line out 3.5 mm jacks
- Supported Processors:
- Intel Core i7, Core i5 and Core i3 processors
- Supports Intel 64 architecture
|
|
Package Includes: |
|
|
|
- REO H81 Socket 1150 mATX Motherboard with HDMI, Video, Audio & Lan
- IO Plate
- Driver CD
- Sata Data Cable
- Manual
|
|
Additional Information: |
|
|
|
- Notes:
- Model: H81
- Product Requirements:
- Supported CPU
- Supported RAM
- The rest of the system
|
|
